P4 P5 P6.67 P8
8531200000
Availability: | |
---|---|

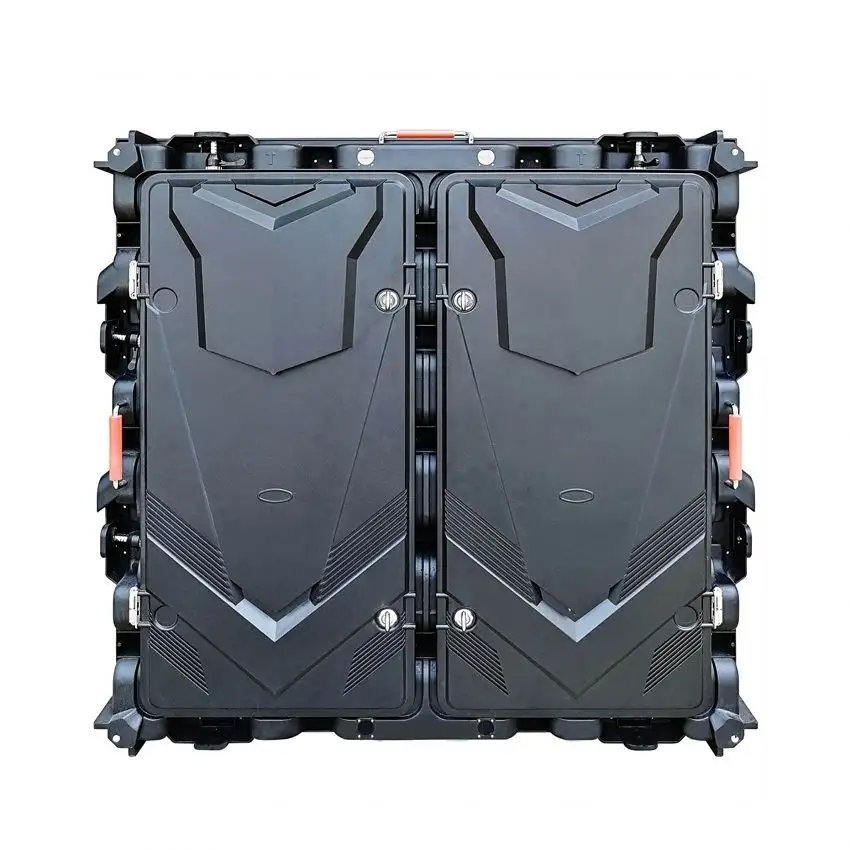

Front
Back
Product Feature
○ The material of cabinet can use die-cast aluminum or iron , can be customized according to customer requirements;
○ HD and high refresh rate:3840HZ ;
○ Outlet and air inlet with waterproof cover, a waterproof level higher than the general market products;
○ Uniform color and high contrast ratio, bringing up the fresh and natural image;
○ Low power consumption and fine heat release;
○ Super wide viewing angle increasing its value by covering more audience;
○ Thinner and lighter,saves on shippingf costs.
○ Modules can be maintained both from front and back.
○ Beautifil appearance,suitable for all kinds of stage display.

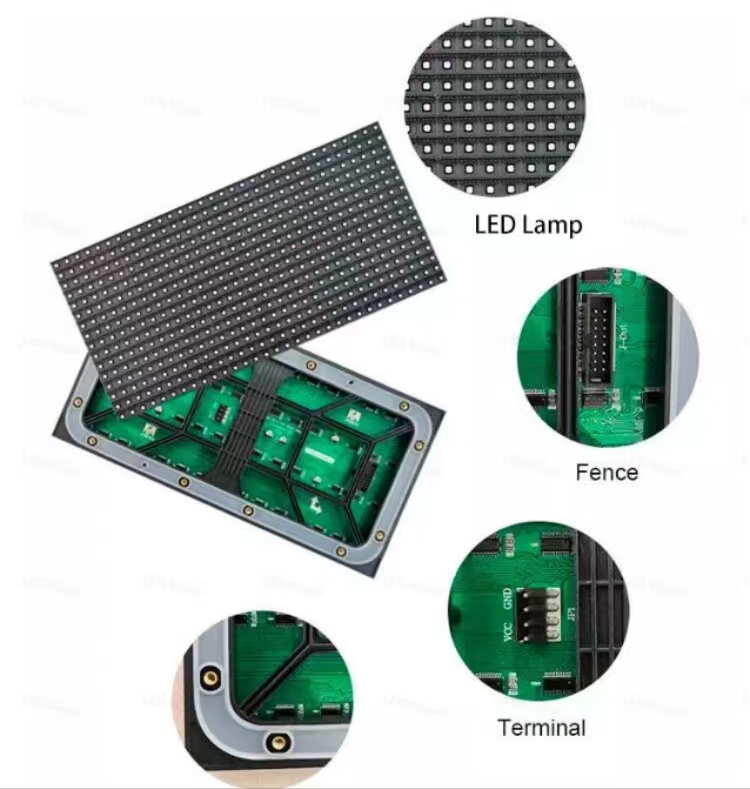

High Quality Outdoor SMD LED Display Module
○The pixels are arranged with a spacing of 10 millimeters, and the red, green, and blue wafers are combined together using adhesive to create a single pixel. This ensures that the colors blend well and remain consistent.
○The LED display has a high density of 10000 dots per square meter, with a display resolution of 32 by 16 pixels. The module itself measures 320 millimeters by 160 millimeters.
○To protect the module, the PCB surface is treated with three layers of defense against moisture, water, and corrosion. The module is made with a bottom shell of PC engineering plastic and is treated with waterproof AB potting glue and UV-resistant coating. The surface is completely sealed, achieving a waterproof rating of IP65.
LED Display Cabinet Features
1、Cabinet material : magnesium aluminum aloy Standard
2、Cabinet size :960x960mm

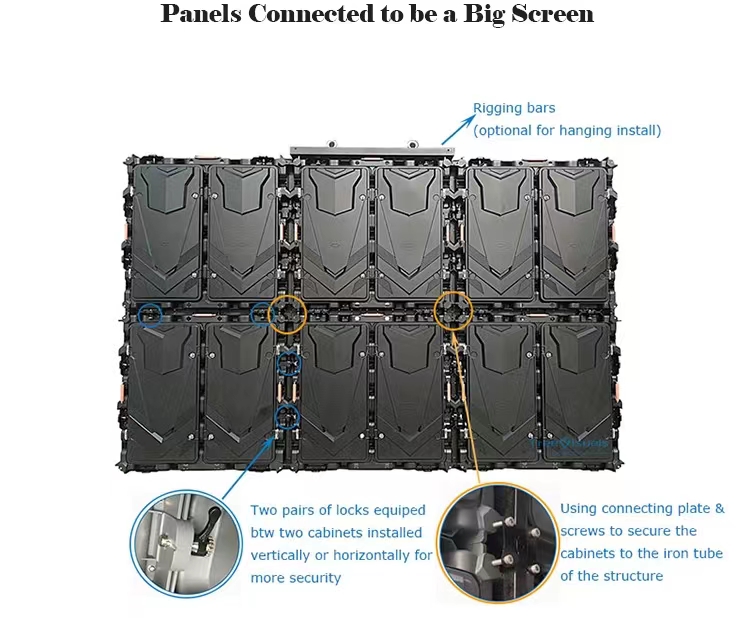

3、Fask lock and fast instalation
4、Front and rear IP65
5、Support hanging, on the pole, wall mounted etc any type fixed instalation
6、Cabinet weight :28kg
Different Applications
The screen can be hanging on truss for events,also can be installation for outdoor advertising it’s can be usd for the soccer field parimeter screen.
Production Process
