Product Features
Outdoor LED displays are made of the highest quality materials and purchased from most well-known suppliers. The final product has the highest quality and provides the best output. High refresh rate and grayscale ensure image quality without gaps and dead spots.
| 1. Super Slim. |
P2.976 Outdoor 250*250mm LED Module & 500*1000mm Cabinet
Cabinet details
Product Parameters
No | Item | Parameter |
1 | Pixel Pitch | P2.976mm |
2 | Pixel Density | 112896 dots/sqm |
3 | Color Configuration | 1R1G1B |
4 | LED Package | SMD2121 |
5 | Module Size | 250mm x 250mm |
6 | Drive Mode | 1/28 Scan |
7 | Brightness | >5000cd/sqm |
8 | Best Viewing Distance | 3m-30m |
9 | Cabinet Size | 500 x 500mm/ 500 x 1000mm |
10 | Cabinet Weight | 7.5KG/ 12KG |
11 | Viewing Angle | H: 160°; V:160° |
12 | Refresh Rate | 1920/3840HZ |
13 | Grey Scale | 16Bit |
14 | Power Input | AC110V/ 220V |
15 | Working Temperature | -20~+50ºC |
16 | Life Span | >100,000 Hours |
17 | Control System | Novastar/ Colorlight |
18 | Operating System | Windows |
| Waterproof IP65 Both cabinet and module are waterproof. Protect LED Display from snow and dust in all weather. |

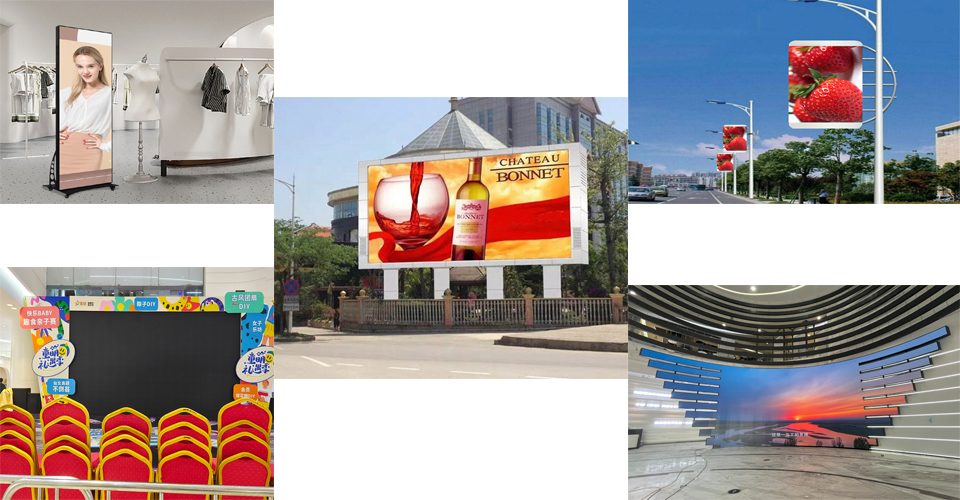

PRODUCT CASES
The screen display is smooth and stable without dragging and flickering. Led rental screen is widely used in stage dance, mobile performance, advertising information release concerts and other places.
Wide Viewing Angle for Broader Reach
The display features a wide viewing angle of 140° horizontal and 140° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.
Packaging and Shipping

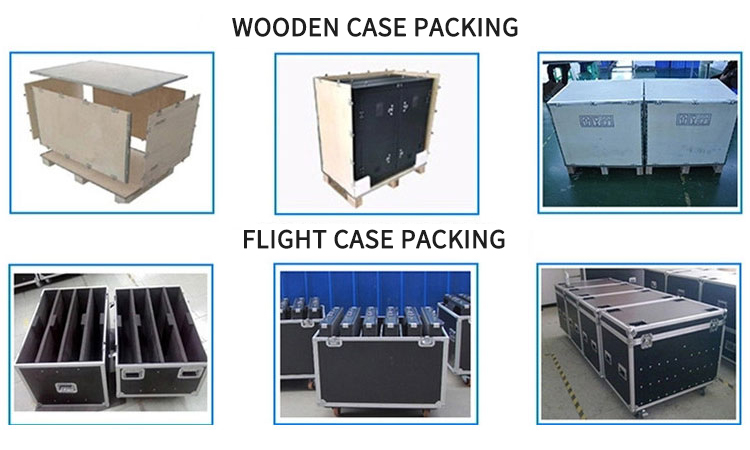

Packaging:
1. The led display modules are packed in cartons.
2. The cabinets of fixed led screen packed in wooden case.
3. The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.
Shipping:
We have three modes of transport:
1. Express: The most popular mode of transport, space and time of full freedom, flexible, adaptable.
2. Sea transportation: Large transportation capacity, high transport freedom.
3. Air transportation: Fast transport speed, smooth operation, less damage to goods.
Company Profile
About US
Shenzhen Xing Guang Cai Technology Co., Limited focus on the production, sale and service of LED technology in the field of research and full color LED display screen, is committed to provide customers with a full range of solutions, is leading in the field of optoelectronic LED integrated operation and service enterprises.
Our company R&D and manufacturing of LED application product variety, product diversification, widely used in various public places, such as commercial square, government agencies, sports venues, transportation facilities, financial institutions, etc., in the domestic market to occupy the leading position in the industry.
FAQ
Q1: How to choose a led display?
A1: You should consider 3 simple questions when you choose a led screen by yourself.
(1) What's the environment, indoor or outdoor?
(2) Is it for rental use ( need to be moved from one place to another place frequently) or for fixed installation (to be installed in a place permanently)?
(3) What is the approximate size of the led screen you would like to purchase?
Q2: Which pixel pitch should you choose?
A2: There's a range of pixel pitch from 1.85-20mm, there is a roughly principle-usually small pixel(1.85mm-10mm) used for indoor led screen, bigger pixel (10mm-20mm) used for outdoor led screen( for example huge advertisement billboard on a big building).
Q3: Which control system should you choose?
A3: There are two kind of control systems on the market-synchronous and asynchronous control system. And for big size led screen(usually more than 20 sqm) need to use synchronous control system, below 20 sqm it's up to you to use synchronous or asynchronous. But asynchronous control system's refresh rate is much lower than synchronous control system and which you can use WIFI , 3G, 4G , wireless to control.
Q4: How to ship?
A4: It is optional and we respect customer's choice. You can choose to ship by air cor by sea.
Q5: How to install it after received?
A5: We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
Q6: Can we custom LED display screen size?
A6: We provide customized services. So just feel free to contact us, we could provide you the reasonable and suitable solution for your project.
