Product Features
Indoor LED displays are made of the highest quality materials and purchased from most well-known suppliers. The final product has the highest quality and provides the best output. High refresh rate and grayscale ensure image quality without gaps and dead spots.
1. The design of anti-bump and corner protection will effectively prevent module from bumping damage;
2. The die-casting aluminum panel using modular design, modules and power box can all be maintained conveniently from the front or rear according to requirements.
3. Support mismatch splicing, inspire unlimited creativity R series panels adopted symmetrical double lock d 95esign, simple achieve vertical and horizontal mismatch splicing with half panel;
4. The design enables fast & simple installation for both hanging & stacking applications.
5. Support curve design.

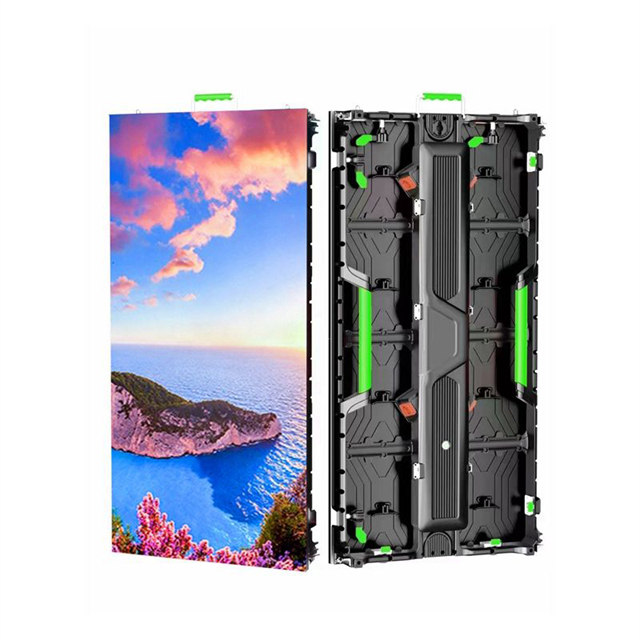

Technical Parameter for P2.604 Indoor Rental LED Screen | ||
Module Specifications | ||
| Pixel Pitch | 2.604mm |
LED Type | SMD2121 | |
Pixel Configuration | 1R1G1B | |
Module Size | 250x250mm | |
Module Resolution | 96*96pixels | |
LED Chip Brand | Epistar | |
Cabinet Specification | ||
| Cabinet Size | 500*1000mm |
Cabinet Resolution | 192*384pixels | |
Module Quantity | 2*4pcs | |
Power Supply | 5V40A 200W | |
Cabinet Material | Die-casting Aluminum | |
Cabinet weight | 12.5kg | |
Screen Parameters | ||
| Pixel Density | 147456dots/sqm |
Brightness | ≥1200cd/m2 | |
Refresh Rate | ≥1920Hz | |
Scanning Mode | 1/32Scan | |
Viewing Angle | H:160°;V:160° | |
Viewing Distance | ≥2m | |
Gray Level | 16 Bit | |
Power Input | AC110~240V | |
MTBF--hours | >10,000 hours | |
Life--hours | ≥100,000 hours | |
IP Grade | IP40 | |
Operating Temperature | -35ºC~ 65ºC | |
Operating System | Windows | |
Storage Humidity | 10ºC~70ºCRH | |
Maintenance Access | Back service | |
Video processor | Colorlight/ Novastar | |
Application
After Sales Service
1. Perfect Display Effect
----- High brightness, high refresh rate, large viewing angle and clearly display effect with easy use control system; Aluminum alloy material both for fixed installation and hanging rental.
2. Attractive Factory Price
----- We are a professional manufacturer, has its own factories and production lines. Our price is more competitive, quality is more reliable.
3. Technology Training
----- 1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
----- 2. We will send our engineers to your country by negotiation.
4. CAD Drawing and Fixing
----- 1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
----- 2. We will send our engineers to your place if we are expected after our negotiation.
5. Warranty policy
----- 1. All products and accessories have been tested before ship out.
----- 2. All products have 1~3 years warranty.
6. Good After-sales Service
----- We offer free technical guidance. We have a professional service team; All the Questions about our product will be replied within 24 hours.
Company Profile
About US
Shenzhen Xing Guang Cai Technology Co., Limited focus on the production, sale and service of LED technology in the field of research and full color LED display screen, is committed to provide customers with a full range of solutions, is leading in the field of optoelectronic LED integrated operation and service enterprises.
Our company R&D and manufacturing of LED application product variety, product diversification, widely used in various public places, such as commercial square, government agencies, sports venues, transportation facilities, financial institutions, etc., in the domestic market to occupy the leading position in the industry.
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P8, what does this mean?
A1: P3 P8 means that the pixel pitch is 3mm 8mm, which determines the resolution of display . The pixel pitch is smaller, the led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide the width/height of LED display, the main use, the viewing distance, the scene photos, special requirements, so I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: What about your quality?
A5: The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6: What about the lead time?
A6: Orders less than 50 square meters display, lead time is 15 working days.
