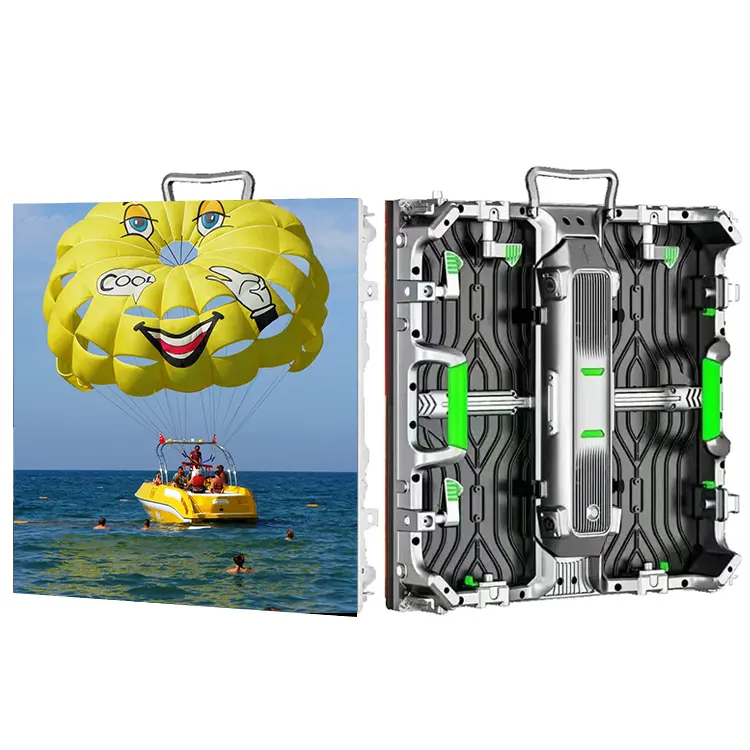

led display cabinet size： 500mmx500mm
led display cabinet material :die-casting aluminum.
ultra-thin thickness with 80mm.
front and back service designrental LED screen adopts magnet
○ The material of cabinet can be die-cast aluminum.
○ HD and high refresh rate:3840HZ.
○ Waterproof IP65.
○ Full color and high contrast.
○ Low power consumption and fine heat release.
○ Super wide viewing angle increasing its value by covering more audience.
○ Thinner and lighter,saves on shipping costs.
○ Modules can be maintained both from front and back.
Outdoor/indoor Frontal Service Rental LED display
Frontal and Rear maintenance is available for LED Panels and Power Box.Perfect Design with new technology and elegant appearance,
-Higher refresh
-Support more applications
-Better roi( return on investment)
-Light weight
-Panel weight only 8 Kg
-More than 20% lighter than regular products
led display cabinet material :die-casting aluminum.
ultra-thin thickness with 80mm.
front and back service design
Rental LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet:handle. cabinet fixed slot, fast lock, magnet adsorption module, module installation knob,power& signal connector, detachable power boxing, and more.
Hard Connection Design with detachable Power box and HUB Board,High IP65 Waterproof with Double Sealing Rubber Ring,Quick Mounting of Buckles for assemble and disassemble of back cover.
High Precision Curve Lock design (-5° to +5°) is adopted to solve the problem that the old curved lock is difficult to use before.Rotational control, more accurate, easy to use and quickly adjust curve degree.
Front /rear service LED sign has four corner protectors in each corner to prevent LED to be damaged,more security for transport,installation, operation, assemble & disassemble foldable design, and easy to use.
Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Matrix Per | 147456Pixel/sqm | 112896Pixel/sqm | 65536Pixel/sqm | 43264Pixel/sqm |
| Module Pixel structure | SMD1515 | SMD2121/1515 | SMD2121/1921 | SMD2121/1921 |
| Brightness | 800-4500MCD | 800-4500MCD | 800-4500MCD | 800-4500MCD |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Resolution | 192×192Pixel | 168×168Pixel | 128×128Pixel | 104×104Pixel |
| Power Con. (Max / Avg) | 800/220W/sqm | 800/220W/sqm | 800/220W/sqm | 800/220W/sqm |
| Module Dimension | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Dimension | 500x500x90mm | 500x500x90mm | 500x500x90mm | 500x500x90mm |
| Cabinet Weight | 8.3kg | 8.3kg | 8.3kg | 8.3kg |
| Service Access | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
| View angle | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° |
| Refresh Rate | 1920/3840/7680Hz | 1920/3840/7680Hz | 1920/3840/7680Hz | 1920/3840/7680Hz |
| Grey Scale (bit) | 16bit | 16bit | 16bit | 16bit |
| IP Rate | IP31/65 | IP31/65 | IP31/65 | IP31/65 |
| Life span | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs |
| Working Temperature | -30-60 ℃ | |||
| Storage Temperature | -30-60 ℃ | |||
| Power Supply | AC100-240V(50-60Hz) | |||
| Color temperature | 3000-10000 K(adjustable) | |||
Truss
Floor Stand
Floor Stand
★Packaging Tips!
1. The led display modules are packed in cartons.
2. The cabinets of fixed led screen packed in wooden case.
3. The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.
