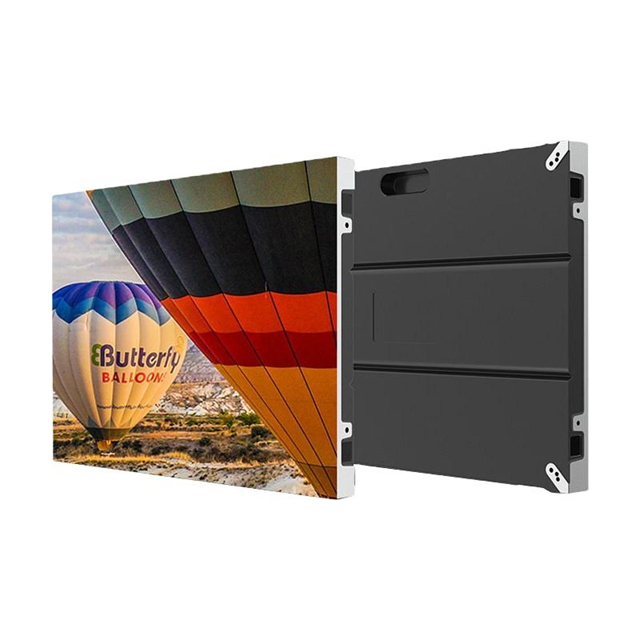

* Die casting aluminum panel
* Panel Size: 640*480mm/320*240pixel
* High brightness 3840Hz refresh rate.
* Novastar/ Colorlight / Linsn control system indoor outdoor led screen
* Specially use for TV studio, conference center, monitoring center and cinema, museum, etc.
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.
LED Display Seamless Splicing
* Slim and light weight, quick disassembly.
* Weight: 5.5kg/cabinet, one person can carry, saving time and effort.
* High degree of protection, high durability.
* Common good, flexible and easy to use.
4:3 Ratio Cabinet Design
EA640F2 indoor front service LED Display is designed with 4:3 golden ratio, the cabinet size is 640*480mm. Specially designed for a variety of 4:3 and 16:9 LED large screens.
Suitable For 320x160mm Size Modules
640x480mm LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

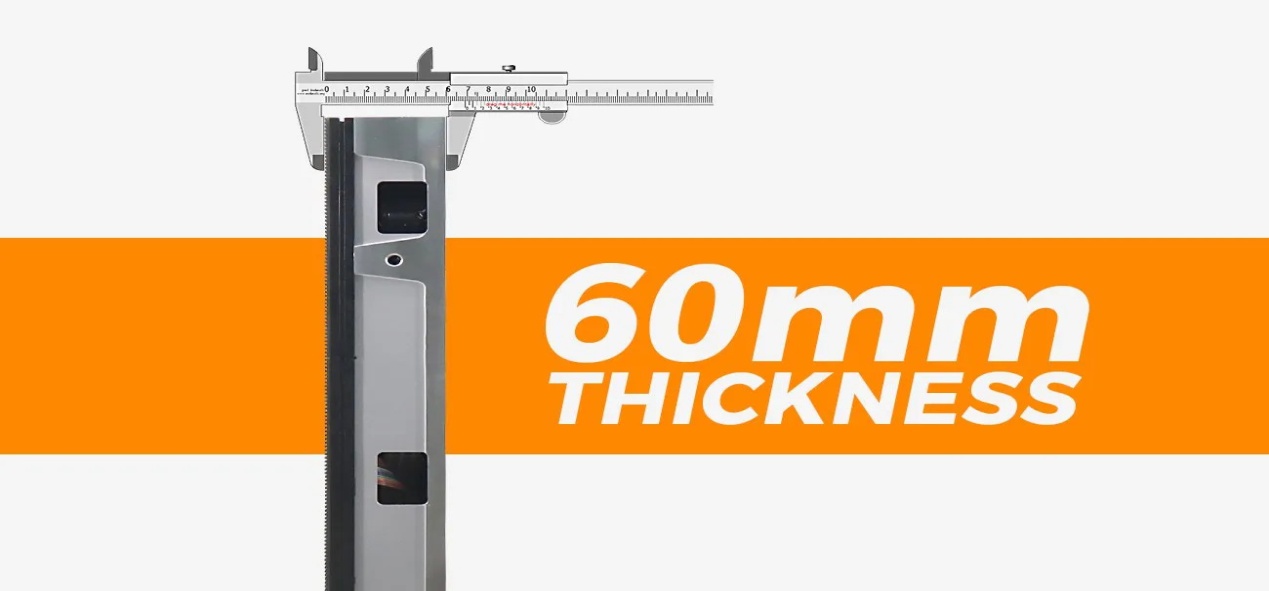

Ultra-thin Cabinet
EA640F2 series LED display thickness is only 60mm
Perfect Structure Design
This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric. Equipped with a quick lock design, the installation and assembly are more convenient.
Wide Viewing Angle
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Installation
Product Parameters
Pixel (mm) | 1.25mm | 1.53mm | 1.66mm | 1.86mm | 2mm | 2.5mm | |
Pixel Density (Pixel/ m²) | 640000 | 422750 | 360000 | 289000 | 250000 | 160000 | |
Cabinet Resolution | 512X384 | 416X312 | 384X288 | 344X258 | 320X240 | 256X192 | |
Led Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | |
Cabinet Size(mm) | 640×480×60 | ||||||
Module Size(mm) | 320x160 | ||||||
Brightness | 800~1200 | ||||||
Gray Scale（bit） | 16 | ||||||
Module Resolution | 256x128 | 208x104 | 192x96 | 172x86 | 160x80 | 128x64 | |
Control Mode | Synchronous asynchronous | ||||||
Repetition Frequency | 60Hz | ||||||
Refresh | ≥3840 | ||||||
Working Voltage | AC:110v~240V | ||||||
Average Power Consumption | 100W/ m²~300w/m² | ||||||
LED Lifetime(H) | 100,000h | ||||||
Storage Temperature (℃) | -20C~+60℃ | ||||||
Operation Temperature (℃) | -10C~+40℃ | ||||||
Protection Grade | 10％～90％RH | ||||||
Operation Humidity | IP40 | ||||||
Cabinet Weight（kg） | 6.5 | ||||||
Maintenance | Front maintenance | ||||||
Applications
Packaging and Shipping
Certifications
Our certifications: CCC CE FCC ROHS ISO9001 ISO14001
Our Services
Warranty:
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free if there is something wrong with them.
We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, FC and so on.
CAD Drawing and Fixing:
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight case, structure information for your reference for free.
Professional and standardized aviation plug with high guarantee High stability and reliability with integrated circuit, dust-proof .
Company Profile
About Us
Shenzhen Xing Guang Cai Technology Co., Limited focus on the production, sale and service of LED technology in the field of research and full color LED display screen, is committed to provide customers with a full range of solutions, is leading in the field of optoelectronic LED integrated operation and service enterprises.
Our company R&D and manufacturing of LED application product variety, product diversification, widely used in various public places, such as commercial square, government agencies, sports venues, transportation facilities, financial institutions, etc., in the domestic market to occupy the leading position in the industry.
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P8, what does this mean?
A1: P3 P8 means that the pixel pitch is 3mm 8mm, which determines the resolution of display. The pixel pitch is smaller, the led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide the width/height of LED display, the main use, the viewing distance, the scene photos, special requirements, so I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: What kind of display do we provide?
A5: We have such as indoor/outdoor/mobile /rental / stage/ Advertising LED display for you to choose.
