Product Features
1. The material of cabinet can use die-cast or iron or aluminum, can be customized according to the customer requirements;
2. HD and high refresh rate: 3840HZ;
3. Outlet and air inlet with waterproof cover, a waterproof level higher than the general market products;
4. Uniform color and high contrast ratio, bringing up the fresh and natural image;
5. Low power consumption and fine heat release;
6. Super wide viewing angle increasing its value by covering more audience;
7. The die casting aluminum cabinet is thinner and lighter, saves on shipping costs.
8. Modules can be maintained both from front and back.
Product Specification
Model No | P2.976 | Module Size | 250*250 mm |
Pixel Configuration | 1R1G1B | Module Resolution | 84*84 dots |
LED Type | SMD2121 | Cabinet Size | 500*500 mm |
Pixel Density | 112896 dots/m² | Cabinet Resolution | 168*168 pixels |
IP Grade | IP40 | Cabinet Material | Die casting aluminum |
Viewing Angle | 160° | Refresh Rate | ≥1920 Hz/s |
Best Viewing Distance | ≥3 m | Operating System | Windows Computer |
Scanning Method | 1/32 scan | Control Mode | Computer/WIFI/USB/4G |
Brightness | ≤1200 cd/m² | Warranty | 2 Years |
Gray Level | 12 Bit | Power Input | AC 110-240V |
Operating Temperature | -35- 65oC | Storage Humidity | 10oC - 80oCRH |

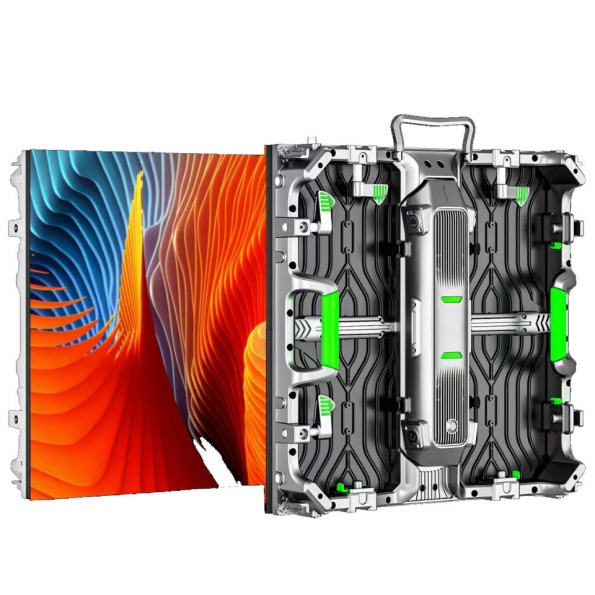

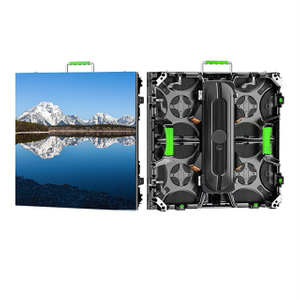

P2.976 Indoor 250*250mm LED Module & 500*500mm Led Cabinet

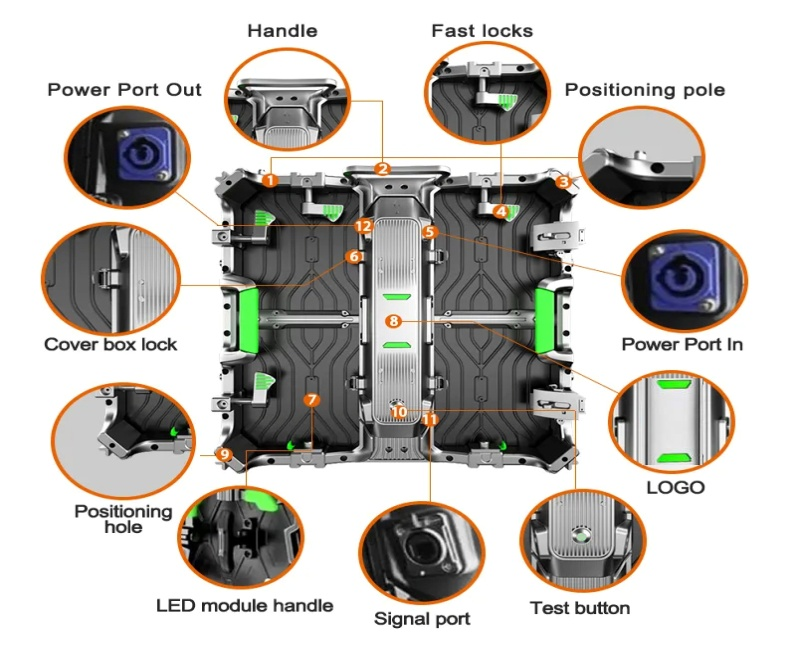

Cabinet details
Accessories
Installation
Application
After Sales Service
1. Perfect Display Effect
----- High brightness, high refresh rate, large viewing angle and clearly display effect with easy use control system; Aluminum alloy material both for fixed installation and hanging rental.
2. Attractive Factory Price
----- We are a professional manufacturer, has its own factories and production lines. Our price is more competitive, quality is more reliable.
3. Technology Training
----- 1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
----- 2. We will send our engineers to your country by negotiation.
4. CAD Drawing and Fixing
----- 1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
----- 2. We will send our engineers to your place if we are expected after our negotiation.
5. Warranty policy
----- 1. All products and accessories have been tested before ship out.
----- 2. All products have 1~3 years warranty.
6. Good After-sales Service
----- We offer free technical guidance. We have a professional service team; All the Questions about our product will be replied within 24 hours.
Packaging and Shipping
Packaging:
1. The led display modules are packed in cartons.
2. The cabinets of fixed led screen packed in wooden case.
3. The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.
Shipping:
We have three modes of transport:
1. Express: The most popular mode of transport, space and time of full freedom, flexible, adaptable.
2. Sea transportation: Large transportation capacity, high transport freedom.
3. Air transportation: Fast transport speed, smooth operation, less damage to goods.
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P8, what does this mean?
A1: P3 P8 means that the pixel pitch is 3mm 8mm, which determines the resolution of display . The pixel pitch is smaller, the led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide the width/height of LED display, the main use, the viewing distance, the scene photos, special requirements, so I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: What about your quality?
A5: The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6: What kind of display do we provide?
A6: We have such as indoor/outdoor/mobile /rental / stage/ Advertising LED display for you to choose.
Q7: What about the lead time?
A7: Orders less than 50 square meters display, lead time is 15 working days.
